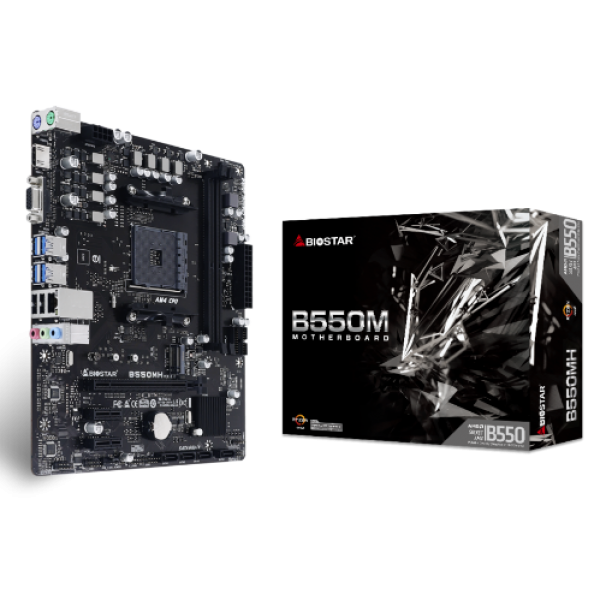

Matična ploča AM4 Biostar B550MH DVI/DP/HDMI/M.2
BIOSTARŠifra: 17680
- Proizvod iz grupe: MATIČNE PLOČE ZA AMD SOKET
- Proizvođač: BIOSTAR
- Dostupna količina: 10
Maloprodajna cena:
10.060,00 rsd.
(* za odlozeno placanje)
WebCena:
9.010,00 rsd.
Popust:
1.050,00 rsd.
Odloženo plaćanje kreditnim karticama banke Intesa moguće je samo u našem maloprodajnom objektu.
- Tip procesora
- AMD
- Podnožje
- AMD® AM4
- Čipset
- AMD® B550
- Format ploče
- Micro ATX
- Podržani procesori
- Socket AM4 support AMD 3rd Gen Ryzen™ (Matisse Renoir) processors and Ryzen™ 4th Gen (Vermeer) processors Support for future AMD Ryzen processors with BIOS update
- Podržana memorija
- DDR4
- Memorija
- 4th Gen AMD Ryzen Processors (Vermeer CPUs Future APUs): Supports Dual Channel DDR4 4400+(OC) 4000(OC) 3800(OC) 3600(OC) 3200 2933 2667 2400 2133 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC) 4000(OC) 3800(OC) 3600(OC) 3200 2933 2667 2400 2133 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC) 4800(OC) 4600(OC) 4400(OC) 4000(OC) 3800(OC) 3600(OC) 3200 2933 2667 2400 2133 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC and ECC Un-buffered 8 16 32 GB DDR4 module
- Integrisana grafička karta
- By CPU model Supports DX12 Supports HDCP
- Slotovi za proširenje
- 1 x PCIe 4.0 3.0 x 16 Slot: Supports PCIe 4.0 x 16 mode with AMD Ryzen™ processors. (Matisse only) Supports PCIe 3.0 x 16 mode AMD Ryzen™ with Radeon Vega Graphics processors. (Renoir only) 2 x PCIe 3.0 x 1 Slot
- Storage
- 4 x SATA III Connector (6Gbs) : Supports AHCI & RAID 0, 1, 10 1 x M.2 (M Key) Socket: Supports M.2 Type 2242 2260 2280 SSD module Supports PCIe 4.0 x 4 (64Gbs) 3.0 x 4 (32Gbs) Supports SATA III (6.0Gbs) SSD * M.2 (M Key) Socket (M2_PCIe-SATA1): The bandwidth is depended on CPU. Supports PCIe 4.0 x 4 (64Gbs) speed, which depends only on Ryzen 3rd Gen Matisse.
- Mrežna karta
- Realtek RTL8111H 10 100 1000 Mbs auto negotiation, Half Full duplex capability Supports Super LAN Surge Protection
- Zvučna karta
- ALC887 7.1 Channels, High Definition Audio, Hi-Fi (Front)
- USB
- 8 x USB 3.2 (Gen1) ports (4 on rear IOs and 4 via internal headers) 6 x USB 2.0 ports (2 on rear IOs and 4 via internal headers)
- Konektori na zadnjoj strani
- 1 x PS2 Keyboard 1 x PS2 Mouse 1 x HDMI Port 1 x VGA Port 1 x LAN port 4 x USB 3.2 (Gen1) Ports 2 x USB 2.0 Ports 3 x Audio Jack
- Interni konektori
- 4 x SATA III (6.0Gbs) Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Internal Stereo Speaker Header 1 x COM Port Header
- Razno
- {"url":"https:\\www.biostar.com.tw\app\en\mb\introduction.php?S_ID=987#specification","title":"Link proizvo\u0111a\u010da","target":"_blank"}
